The ARB RD136 Air Locker is the ultimate selectable traction aid for Nissan vehicles equipped with the H233B rear axle and 31-spline shafts. Designed for serious off-road use, this locker provides 100 percent traction on demand with the flip of a switch—no need to stop or leave the driver's seat.
Using a pneumatically actuated locking system inside the differential, the RD136 instantly locks both axle shafts together to eliminate wheel spin in low-traction situations. When unlocked, it operates as a standard open differential for normal driving. The rugged two-piece design and minimal moving parts offer unmatched strength and reliability, while the steel-reinforced elastomer seal stands up to extreme temperatures.
Perfect for demanding off-road terrain from Utah’s slickrock to muddy forest roads, this Air Locker transforms your Nissan into a true trail machine.
Note: Requires air compressor (sold separately). Must use 50mm ID carrier bearings (part number 160116) for optimal bearing life.
Features & Benefits:
Fits Nissan H233B rear axle with 31 spline axle shafts
Provides 100% traction on demand without compromising on-road drivability
Pneumatic activation from the driver's seat for instant engagement at any speed

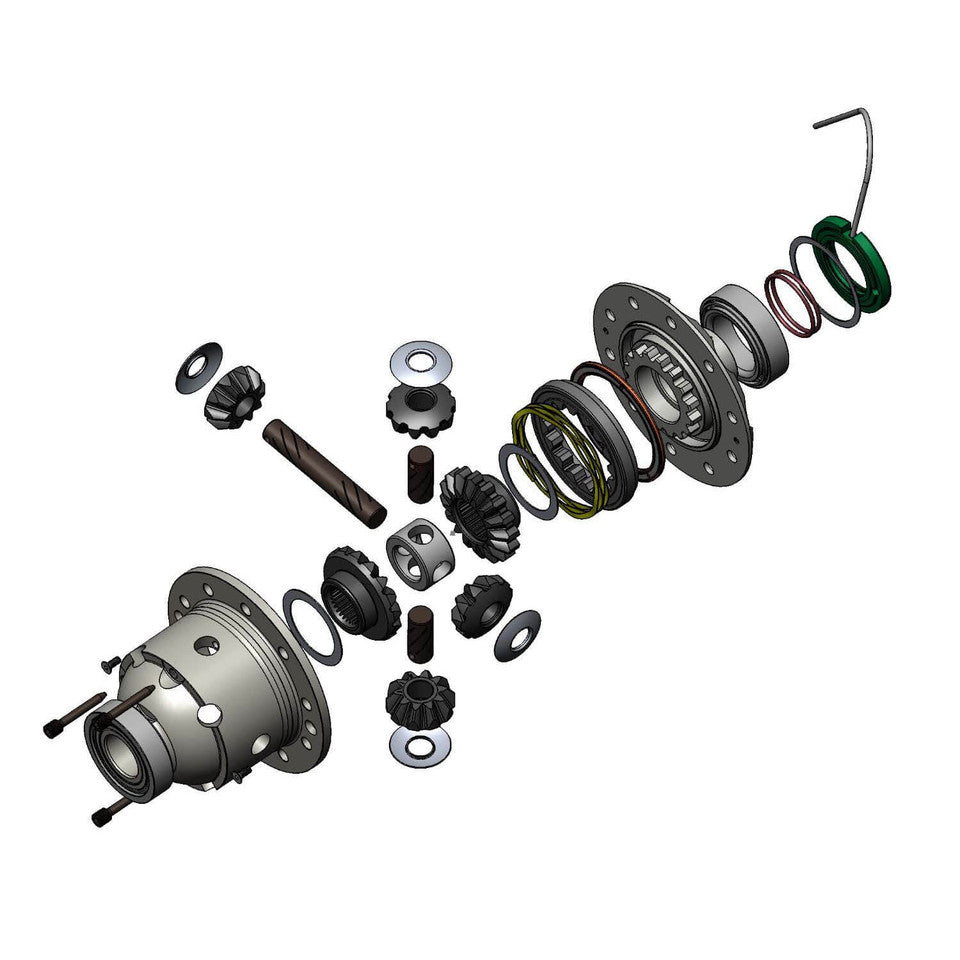

Two-piece housing with minimal moving parts for maximum strength and durability
Patented timed locking mechanism ensures fast and consistent performance
Reinforced annular seal withstands extreme climates and heavy-duty use

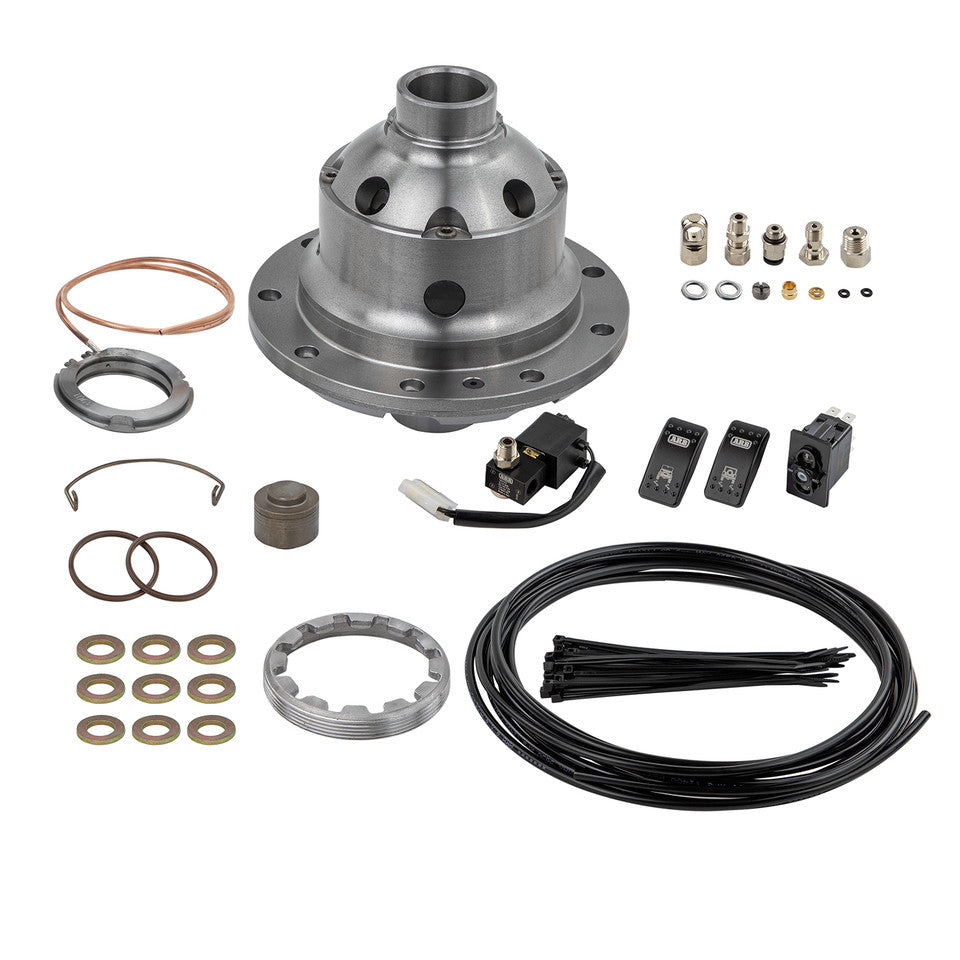

Includes differential, solenoid, air line, switch, and bulkhead fittings
5-year manufacturer warranty
Air compressor required (sold separately)
Fitment Info:
Axle: H233B
Position: Rear
Axle Shaft Diameter: 1.26 in
Spline Count: 31
Gear Ratio: All
Bearing Requirement: 50mm ID carrier bearings (Part #160116)
