ICON 19-23 GM 1500, 2.375-3.75" Lift, Stage 3 EXP Suspension System, Billet at Sexton Offroad in Salt Lake City & Park City, Utah

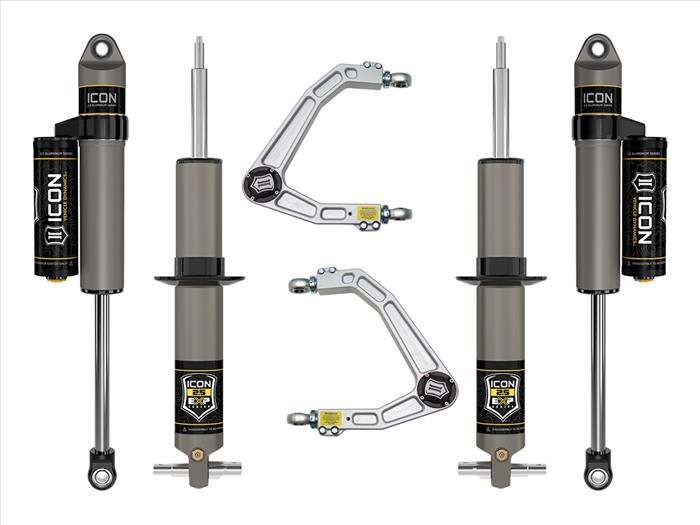

The ICON Vehicle Dynamics Stage 3 EXP complete suspension system for the 2019-2023 GM 1500 pickup builds on ICON's 2.5 EXP Shock Kit with the addition of billet front upper control arms, providing proper alignment at any ride height, improved on- and off-road performance as well as front-end lift and leveling for a proper stance and fitment of up to 35" tires. This system features the innovative new 2.5 EXP series coilover shocks along with our proven 2.5 Aluminum Series shocks with piggyback reservoirs for the rear.

This Stage 3 system features the 2019-2023 GM 1500 EXP Series front shock absorbers that combine the performance of a fully rebuildable 2.5-inch diameter premium shock absorber with the convenience and cost-benefits of re-using the truck’s factory coil spring and other components. EXP bridges the gap between spacer lifts and threaded bodied coilovers, providing suspension lift, custom-tuned performance and maximum travel, all in an economical package.

The included ICON billet aluminum upper control arm kit is designed to improve the overall performance of the new 2019-2023 GM 1500 pickup with corrected front-end geometry, increased on-vehicle camber and caster adjustment, and improved suspension component clearance. Additionally, replacing the OE ball joint with the serviceable ICON Delta Joint allows for full bump and droop travel of the front suspension while eliminating bind.

Rounding out the Stage 3 EXP suspension system are 2.5 Aluminum Series rear shocks specially tailored for the 2019-2023 GM 1500. The 2.5 Aluminum Series shocks’ larger diameter offers outstanding performance off-road and a smooth ride on the street. Piggyback reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. They also feature a unique internal Bump Zone that when used creates an additional 20% of damping force to help better control hard bottom outs. Their pairing with the ICON 2.5 EXP Series front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Silverado 1500 or Sierra 1500.

Features | Specification:

• Vehicle specific design for 2019-2023 GM 1500 pickups
• 2.5 EXP Series front shocks with internal reservoirs utilize factory coil and coil hardware
• Adjustable front ride heights from 2.375-3.75" of front lift over stock with the use of snap ring (lift heights vary slightly depending on trim/engine)
• One-piece, impact extruded, hard anodized aluminum cylinders offer excellent corrosion resistance and consistent finish
• 7/8" diameter induction hardened, chrome plated shock shaft with inverted shaft-up design
• Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
• UCAs feature ICON's Patented Delta Joint (U.S. Patent No. 10,731,700)
• 2.5 Aluminum Series rear piggyback reservoir shocks provide increased performance and balanced tune with coilovers
• CNC machined 6061 aluminum components with a black anodized finish
• All ICON shock absorbers are fully rebuildable and re-tunable

Note(s):

• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 4.75” Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 5” Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9 with 5” Backspace / 0mm Offset
• Recommended Aftermarket Tires (Silverado 1500): 35"x12.50" (Minor fender trimming and modifications may be required)
• Recommended Aftermarket Tires (Sierra 1500): 34"x12.00" (Minor fender trimming and modifications may be required)
• APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
• APPLICATION NOTE #83: Trimming Of The Upper Control Arm Stop Required Or Down Travel Will Be Limited By Upper Arm Stop
• APPLICATION NOTE #110: Trimming Required For Recommended Tire Size.
• Not compatible with models equipped with Adaptive Ride Control (ARC)
• Not compatible with Silverado 1500 ZR2 or Sierra 1500 AT4X sub-models
• Not compatible with Silverado 1500 TRAIL BOSS or Sierra 1500 AT4
• Models equipped with gasoline engines will have front lift height range of 2.375-3.75” over stock (lift heights vary slightly depending on trim/engine)
• Models equipped with Duramax diesel engines will have front lift height range of 1.75-3” over stock

Upgrade your 4x4 with quality parts and accessories from Sexton Offroad. Visit us for installation at our Salt Lake City or Park City, Utah locations. Plus, enjoy free shipping on thousands of products nationwide!

This Item Fits:

• Chevrolet Silverado 1500 WT 2019 - 2023
• Chevrolet Silverado 1500 Custom 2019 - 2023
• Chevrolet Silverado 1500 SSV 2019 - 2021
• Chevrolet Silverado 1500 WT Cab Regular 2019 - 2020
• Chevrolet Silverado 1500 WT Doble Cabina 2019 - 2020
• Chevrolet Silverado 1500 LTZ 2019
• Chevrolet Silverado 1500 LT 2019
• Chevrolet Silverado 1500 RST 2019
• Chevrolet Silverado 1500 High Country 2019
• Chevrolet Silverado 1500 LTZ 2020 - 2023
• Chevrolet Silverado 1500 LT 2020 - 2023
• Chevrolet Silverado 1500 RST 2020 - 2023
• Chevrolet Silverado 1500 High Country 2020
• Chevrolet Silverado 1500 High Country 2021 - 2023
• Chevrolet Silverado 1500 PPV 2023
• Chevrolet Silverado 1500 Base 2023
• GMC Sierra 1500 Base 2019 - 2021
• GMC Sierra 1500 SLE 2019
• GMC Sierra 1500 Elevation 2019
• GMC Sierra 1500 SLT 2019
• GMC Sierra 1500 SLT 2020 - 2023
• GMC Sierra 1500 SLE 2020 - 2023
• GMC Sierra 1500 Elevation 2020 - 2023
• GMC Sierra 1500 Pro 2022 - 2023
