ICON 1991-97 Toyota 80 Series Land Cruiser, 3" Lift, Stage 1 Suspension System at Sexton Offroad in Salt Lake City & Park City, Utah

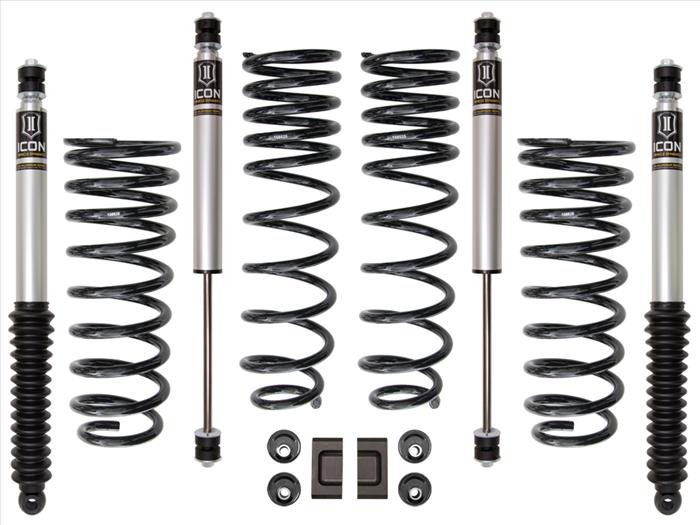

After an in-depth R&D process, ICON engineers have developed a 3” suspension system for the 80 Series that is aimed to improve on-road handling characteristics while also maximizing the Land Cruiser’s off-road potential. This Stage 1 system includes ICON-designed dual rate coil springs, caster correction bushings, sway bar relocation components, all bracketry and hardware required for install, and ICON Vehicle Dynamics 2.0 Aluminum Series shocks that feature a vehicle specific valving for optimized ride quality and balanced damping front to rear. This ICON Stage 1 System is the perfect entry level suspension system for drivers seeking a quality on-road ride with exceptional off-road characteristics as well.

Features | Specification:

• 3" lift height
• Approximately 40% increased front wheel travel over stock
• Approximately 35% increased rear wheel travel over stock
• ICON-engineered dual rate coil springs provide exceptional on-road ride quality and outstanding off-road performance
• Vehicle specific tuned 2.0 Aluminum Series front and rear shocks offer superior shock damping and control
• 2.0 aluminum body IFP shocks with 5/8" shaft
• Corrosion resistant anodized aluminum shock body
• 6061 aircraft grade aluminum CNC machined components
• 100% bolt-on design means no drilling, cutting or welding necessary for install

Note(s):

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: 17x8.5" with 4.63” Backspace
• Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
• APPLICATION NOTE #150: Shocks Are Fully Serviceable
• ICON’s advertised lift heights are based around a typical 80 Series build which usually includes added weight of accessories such as heavier front bumper/winch and heavier rear bumper/spare tire. Lift heights may be higher than advertised if installed on a stock weighted vehicle.

Upgrade your 4x4 with quality parts and accessories from Sexton Offroad. Visit us for installation at our Salt Lake City or Park City, Utah locations. Plus, enjoy free shipping on thousands of products nationwide!

This Item Fits:

• Toyota Land Cruiser 1991 - 1997
