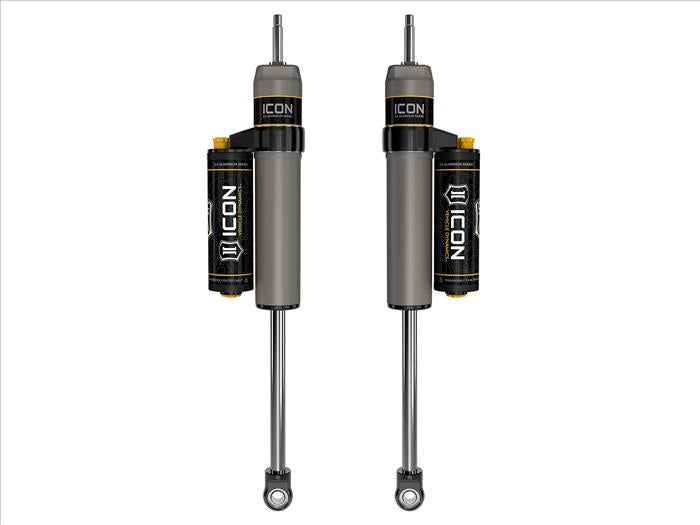

ICON 2005-2022 Ford F-250/F-350 Super Duty 4WD, 4.5” Lift, Front 2.5 VS Piggyback Reservoir w/ CDCV Shocks, Pair at Sexton Offroad in Salt Lake City & Park City, Utah

ICON’s 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Featuring one-piece impact extruded aluminum cylinders, these 2.5 Aluminum Series shocks offer lighter weight, improved corrosion resistance, and a more uniform finish than traditional plated steel cylinders. Like all ICON'S Shock Absorbers, 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below thetop cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.

Features | Specification:

• ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
• Piggyback reservoir design improves heat dissipation to reduce shock fade during prolonged use
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• Nitrogen charged monotube design with piggyback reservoir
• Double-sealed Schrader caps reduce risk of damage
• One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• 7/8" diameter induction hardened, chrome plated shock shaft
• PTFE lined spherical bearings and application specific mounting hardware
• 6061 aircraft grade aluminum CNC machined components
• One-piece, hard anodized, impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• 100% Rebuildable
• 100% Revalveable
• ICON’s internal “Bump Zone" increases damping by 20% to provide more control as the shock approaches full compression

Note(s):

• OEM Wheels & Tires Fitment: Not compatible with all available OE wheel/tire combinations. Aftermarket wheels with lower offset/less backspace recommended.
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
• Recommended Aftermarket Tires: 35" x 12.50" (37" x 12.50" with fender trimming and modifications required)
• Compatible with 4.5” of front lift over stock of 2005-2019 F-250/F-350 4WD
• Compatible with 4.5” of front lift over stock of 2020-2022 F-250/F-350 4WD without Tremor package
• Compatible with 3.5” of front lift over stock of 2020-2022 F-250/F-350 4WD equipped with Tremor package
• Can be installed as secondary shocks in OE location with ICON 4-5.5" lift coilover conversions

Upgrade your 4x4 with quality parts and accessories from Sexton Offroad. Visit us for installation at our Salt Lake City or Park City, Utah locations. Plus, enjoy free shipping on thousands of products nationwide!

This Item Fits:

• Ford F-250 Super Duty 2005 - 2019 4WD
• Ford F-250 Super Duty Limited 2020 - 2022
• Ford F-250 Super Duty King Ranch 2020 - 2022 4WD
• Ford F-250 Super Duty Lariat 2020 - 2022 4WD
• Ford F-250 Super Duty XL 2020 - 2022 4WD
• Ford F-250 Super Duty Platinum 2020 - 2022
• Ford F-250 Super Duty XLT 2020 - 2021 4WD
• Ford F-250 Super Duty XLT 2022 4WD
• Ford F-350 Super Duty 2005 - 2019 4WD
• Ford F-350 Super Duty Platinum 2020 - 2022 4WD
• Ford F-350 Super Duty Lariat 2020 - 2022 4WD
• Ford F-350 Super Duty King Ranch 2020 - 2022
• Ford F-350 Super Duty 2020 - 2022 4WD
• Ford F-350 Super Duty King Ranch 2020 - 2022 4WD
• Ford F-350 Super Duty XL 2020 - 2022 4WD
• Ford F-350 Super Duty Limited 2020 - 2022
• Ford F-350 Super Duty XLT 2020 - 2021 4WD
• Ford F-350 Super Duty XLT 2022 4WD
