ICON 2005-2022 Ford Super Duty 4WD, Radius Arm System at Sexton Offroad in Salt Lake City & Park City, Utah

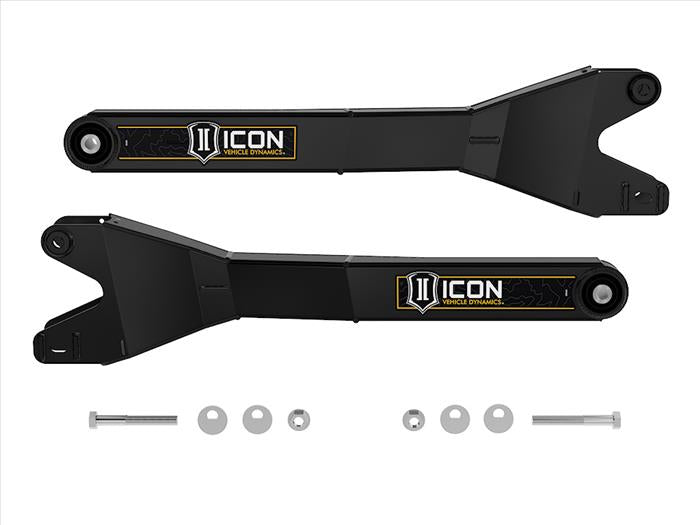

The ICON Vehicle Dynamics Ford 2005-2022 F-250, F-350, and F-450 Super Duty Radius Arm System is designed with adjustable caster cams for use with stock height trucks up to 3” of front lift with the radius arm installed in the factory pivot. When used in conjunction with an ICON radius arm drop bracket system, proper caster can also be maintained for 4” to 7" lifts, including coilover conversion systems. They feature a sealed pivot bushing that minimizes road feedback and ensures a long life and quiet operation. Additionally, their fabricated, fully boxed design ensures strength and utilizes a profile optimized for tire clearance at full steering lock, making a 37” tall tire clear without coming in contact with the radius arm.

Features | Specification:

• Fully boxed design
• Built in caster adjustment for optimized return to center
• Replaceable sealed pivot bushing provides maintenance free operation
• CNC machined and laser cut steel components
• Semi-gloss black powder coat finish
• Ability to have a 5.5" backspace wheel with 37" tires without contact with the arm at steering lock

Note(s):

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: Up to a 37" x 12.50"
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
• Compatible with 0-3" front lift height without need for caster bushings
• Radius arm drop brackets required for use with 4-7” lift heights. (ICON part # 64040, 64045, or, 64055)

Upgrade your 4x4 with quality parts and accessories from Sexton Offroad. Visit us for installation at our Salt Lake City or Park City, Utah locations. Plus, enjoy free shipping on thousands of products nationwide!

This Item Fits:

• Ford F-250 Super Duty 2005 - 2022 4WD
• Ford F-250 Super Duty 2005 - 2010 4WD
• Ford F-250 Super Duty 2011 - 2016 4WD
• Ford F-250 Super Duty 2017 - 2022
• Ford F-350 Super Duty 2005 - 2022 4WD
• Ford F-350 Super Duty 2005 - 2010 4WD
• Ford F-350 Super Duty 2011 - 2016 4WD
• Ford F-350 Super Duty 2017 - 2022 4WD
• Ford F-450 Super Duty 2005 - 2022 4 X 4
