ICON 2005-2023 Toyota Tacoma, 2.5 VS Coilover Kit, Internal Reservoir at Sexton Offroad in Salt Lake City & Park City, Utah

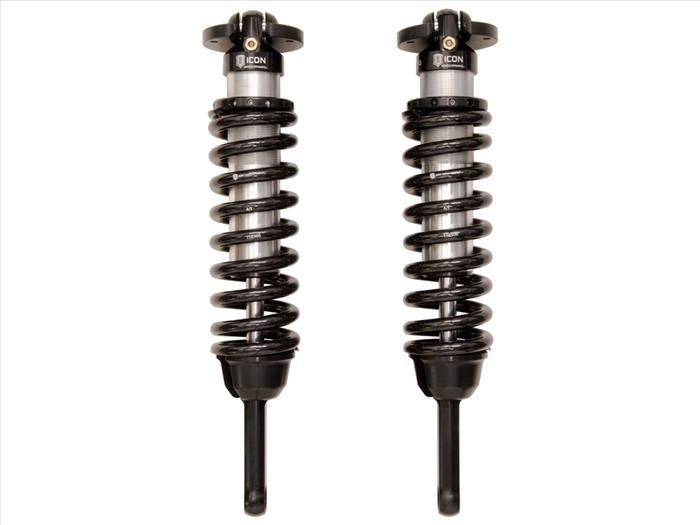

ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2005-2023 Toyota Tacoma. These adjustable coilovers allow up to 0-3.5” of lift height adjustability on 2005-2015 models or 0-2.75” of lift height adjustability on 2016-2023 models, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tacoma.

Features | Specification:

• Increased wheel travel and improved ride quality over stock
• Vehicle specific tuned for superior shock damping and control
• Height-adjustable coilovers offer 0-3.5" or 0-2.75" of lift height adjustment depending on year model
• ICON engineered coil springs
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
• FK rod end bearings for extended longevity and minimal deflection
• Fully rebuildable and re-tunable

Note(s):

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 4.75” Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 5.00” Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9 with 5.00” Backspace / 0mm Offset
• Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
• APPLICATION NOTE #47: 700Lb/In Expedition Coil Available For Heavier Equipped Vehicles
• APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
• APPLICATION NOTE #109: 2016-2023 Tacoma Lift Range Is 0-2.75”
• APPLICATION NOTE #110: Trimming Required For Recommended Tire Size
• APPLICATION NOTE #111: Bump Stop Spacer Kit 51045 Can Be Installed To Increase Preload .25” Beyond Maximum
• Will not fit 2005-2015 2WD 5-Lug Toyota Tacoma models
• 2005-2015 Toyota Tacoma will have front lift height range of 0-3.5" over stock
• 2017-2023 Tacoma TRD Pro models will have front lift height range of 0-1.25" over stock

Upgrade your 4x4 with quality parts and accessories from Sexton Offroad. Visit us for installation at our Salt Lake City or Park City, Utah locations. Plus, enjoy free shipping on thousands of products nationwide!

This Item Fits:

• Toyota Tacoma Base 2005 - 2015 4WD
• Toyota Tacoma Pre Runner 2005 - 2015
• Toyota Tacoma SR5 Prerunner 2006 - 2009
• Toyota Tacoma TRD Sport Prerunner 2006 - 2009
• Toyota Tacoma Base Prerunner 2006
• Toyota Tacoma TRD Sport 2010 - 2015
• Toyota Tacoma TRD Pro 2015
• Toyota Tacoma Edicion Especial 2016 - 2023
• Toyota Tacoma TRD Sport 2016 - 2023
• Toyota Tacoma TRD Off-Road 2016 - 2023
• Toyota Tacoma Limited 2016 - 2023
• Toyota Tacoma SR5 2016 - 2023
• Toyota Tacoma SR 2016 - 2023
• Toyota Tacoma Sport 2017 - 2023
• Toyota Tacoma TRD Pro 2017 - 2023
• Toyota Tacoma Nightshade 2021 - 2023
• Toyota Tacoma Trail 2021 - 2022
• Toyota Tacoma Base 2022 - 2023
• Toyota Tacoma Trail Special Edition 2023
• Toyota Hilux 2005 - 2015
• Toyota Hilux 2016 - 2023
