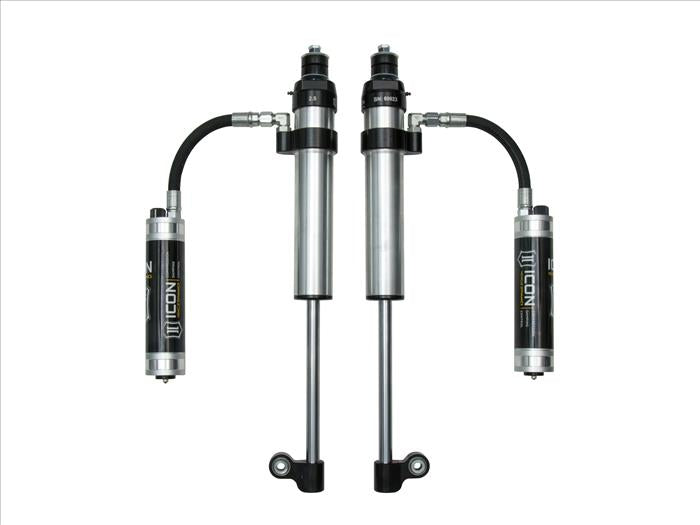

ICON 2005-2023 Toyota Tacoma, Rear, 2.5 RXT Remote Reservoir w/ CDCV Shocks, Pair at Sexton Offroad in Salt Lake City & Park City, Utah

ICON’s 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. With a truly vehicle-specific design, these shocks are configured specifically for each application in both length and damping tune. Featuring one-piece impact extruded aluminum cylinders, these 2.5 Aluminum Series shocks offer lighter weight, improved corrosion resistance, and a more uniform finish than traditional plated steel cylinders. Like all ICON shock absorbers, these 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON’s unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal “Bump Zone” that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom-out conditions and controls the suspension effectively when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. If you are looking for a more user defined tune, consider looking into the Omega Series bypass shocks.

Features | Specification:

• PTFE lined spherical bearings and application specific mounting hardware
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
• Nitrogen charged monotube design with remote reservoir
• One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• ICON’s internal “Bump Zone" increases damping by 20% to provide more control as the shock approaches full compression
• One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• 7/8" diameter induction hardened, chrome plated shock shaft
• 6061 aircraft grade aluminum CNC machined components
• Double-sealed Schrader caps reduce risk of damage
• 100% Rebuildable
• 100% Revalveable

Note(s):

• ICON Multi-Rate Leaf Springs Part # 158505 (QTY of 2) required for installation
• Compatible with 0-2.625" of rear lift provided by ICON Multi-Rate Leaf Springs
• Not compatible with 2005-2015 2WD 5-Lug Toyota Tacoma models

Upgrade your 4x4 with quality parts and accessories from Sexton Offroad. Visit us for installation at our Salt Lake City or Park City, Utah locations. Plus, enjoy free shipping on thousands of products nationwide!

This Item Fits:

• Toyota Tacoma Base 2005 - 2015 4WD
• Toyota Tacoma Pre Runner 2005 - 2015
• Toyota Tacoma TRD Sport Prerunner 2006 - 2009
• Toyota Tacoma SR5 Prerunner 2006 - 2009
• Toyota Tacoma Base Prerunner 2006
• Toyota Tacoma TRD Sport 2010 - 2023
• Toyota Tacoma TRD Pro 2015
• Toyota Tacoma TRD Pro 2017 - 2023
• Toyota Tacoma SR5 2016 - 2023
• Toyota Tacoma Limited 2016 - 2023
• Toyota Tacoma SR 2016 - 2023
• Toyota Tacoma Edicion Especial 2016 - 2023
• Toyota Tacoma TRD Off-Road 2016 - 2023
• Toyota Tacoma Sport 2017 - 2023
• Toyota Tacoma Nightshade 2021 - 2023
• Toyota Tacoma Trail 2021 - 2022
• Toyota Tacoma Base 2022 - 2023
• Toyota Tacoma Trail Special Edition 2023
