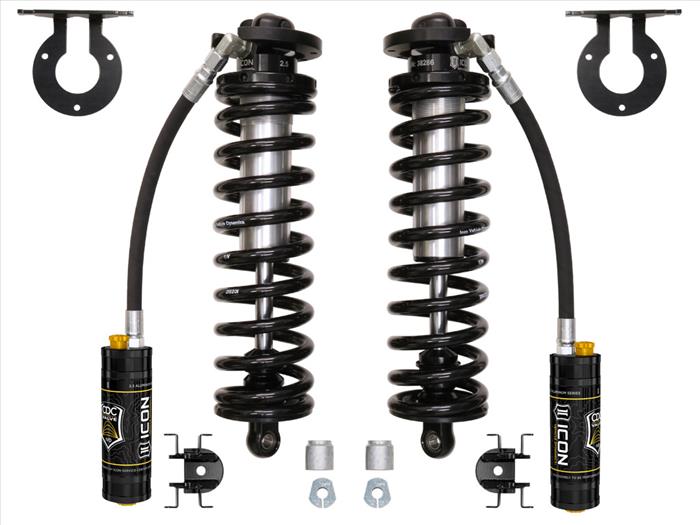

ICON 2005-2024 Ford F-250/F-350 Super Duty 4WD, 2.5” Lift, 2.5 VS Remote Reservoir w/ CDCV Coilover Conversion Kit at Sexton Offroad in Salt Lake City & Park City, Utah

ICON's 2.5 VS Series Remote Reservoir CDCV Bolt-In Coilover Conversion Kit will add a new level of performance and adjustability to 2005-2024 F-250 and F-350 pickup trucks. The advantage of utilizing a coilover conversion kit is that they have been designed to increase the overall damping ability of the vehicle while at the same time allowing for user-defined ride height adjustment. The 2.5" Remote Reservoir Coilover featured in these kits is based off of ICON’s 2.5 VS Series shock line - meaning that features like ICON engineered coil springs, FK Rod End bearings, and vehicle-specific valving come standard. Quality machined components and a fully serviceable design make for a product that will stand the test of time, yet retain the ability to be rebuilt or re-valved as necessary. ICON’s CDC (Compression Damping Control) Valve option adds to the adjustability of these coilover conversion kits, allowing the end-user to adjust the ride characteristics of the vehicle with the turn of a knob.

Features | Specification:

• Bolt-in system fits in OE coil bucket location
• Ride height adjustable coilovers provide 2.5-3" or 3.25-3.75" of lift, depending on year model of truck
• Decreased body roll and improved on and off-road ride dynamics
• Vehicle-specific shock valving provides unparalleled ride quality and control
• Shocks are fully rebuildable and revalveable
• Coilover conversion allows for addition of secondary shock
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• Eibach coil springs guaranteed for life against sagging or breakage
• FK Rod End bearings for extended longevity and minimal deflection
• CDCV technology allows for quick and easy compression damping adjustment

Note(s):

• Factory Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
• Recommended Aftermarket Tires: 35" x 12.50" (37" x 12.50" with fender trimming and modifications required)
• Only compatible with 4WD models
• Not compatible with F-450 or F-550
• Removal of the coil centering cup in factory coil bucket required for installation
• 2005-2019 Super Duty diesel models will have front lift height range of 2.5-3" over stock
• 2020-2022 Super Duty diesel models without Tremor package will have front lift height range of 3.25-3.75" over stock
• 2020-2022 Super Duty diesel models equipped with Tremor package will have front lift height range of 2.25-2.75" over stock
• 2023-2024 Super Duty diesel models without Tremor package will have front lift height range of 2.5-3" over stock
• 2023-2024 Super Duty diesel models equipped with Tremor package will have front lift height range of 1.5-2" over stock
• 2023-2024 Super Duty gas models without Tremor package will have front lift height range of 3-3.5" over stock
• 2023-2024 Super Duty gas models equipped with Tremor package will have front lift height range of 2-2.5" over stock
• 2005-2016 F-250s require 4” rear blocks with 15” U-bolt kit to sit level with 2.5” lifted front. ICON block kit part # 194275 and U-bolt kit part # 37003 (2005-2010 models) or part # 67003 (2011-2016 models) are recommended.
• Brake line kit (Part # 61111) is optional for end users with 2017-2024 models who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install)
• If installing with ICON 2.5 Series remote reservoir secondary shocks, reservoir doubler kit part number 611003 is also required
• Due to tight clearances and varying placement of vehicle’s wiring harness in the upper front-passenger wheel well area, installer must ensure adequate clearance between the harness, coilover reservoir, and other components to prevent chafing/damage to wire harness. If adequate clearance cannot be achieved, please contact ICON Customer Service.

Upgrade your 4x4 with quality parts and accessories from Sexton Offroad. Visit us for installation at our Salt Lake City or Park City, Utah locations. Plus, enjoy free shipping on thousands of products nationwide!

This Item Fits:

• Ford F-250 Super Duty XL 2005 - 2016 4WD
• Ford F-250 Super Duty XLT 2005 - 2016 4WD
• Ford F-250 Super Duty Lariat 2005 - 2016 4WD
• Ford F-250 Super Duty King Ranch 2005 - 2016 4WD
• Ford F-250 Super Duty Harley-Davidson Edition 2005 - 2010
• Ford F-250 Super Duty FX4 2008 - 2014
• Ford F-250 Super Duty Cabela's 2009 - 2010
• Ford F-250 Super Duty Platinum 2013 - 2016
• Ford F-250 Super Duty Base 2015 - 2016
• Ford F-250 Super Duty XLT 2017 - 2019 4WD
• Ford F-250 Super Duty Platinum 2017 - 2019
• Ford F-250 Super Duty XL 2017 - 2019 4WD
• Ford F-250 Super Duty Lariat 2017 - 2019 4WD
• Ford F-250 Super Duty King Ranch 2017 - 2019 4WD
• Ford F-250 Super Duty Limited 2018 - 2019
• Ford F-250 Super Duty Lariat 2020 - 2022 4WD
• Ford F-250 Super Duty King Ranch 2020 - 2022 4WD
• Ford F-250 Super Duty XL 2020 - 2022 4WD
• Ford F-250 Super Duty Limited 2020 - 2022
• Ford F-250 Super Duty Platinum 2020 - 2022
• Ford F-250 Super Duty XLT 2020 - 2021 4WD
• Ford F-250 Super Duty XLT 2022 4WD
• Ford F-250 Super Duty XLT 2023 - 2024
• Ford F-250 Super Duty Platinum 2023 - 2024
• Ford F-250 Super Duty XL 2023 - 2024 4WD
• Ford F-250 Super Duty Lariat 2023 - 2024
• Ford F-250 Super Duty King Ranch 2023 - 2024
• Ford F-250 Super Duty Limited 2023 - 2024
• Ford F-350 Super Duty XL 2005 - 2016 4WD
• Ford F-350 Super Duty XLT 2005 - 2016 4WD
• Ford F-350 Super Duty Lariat 2005 - 2016 4WD
• Ford F-350 Super Duty King Ranch 2005 - 2016 4WD
• Ford F-350 Super Duty Harley-Davidson Edition 2005 - 2010
• Ford F-350 Super Duty FX4 2008 - 2009
• Ford F-350 Super Duty Cabela's 2009 - 2010
• Ford F-350 Super Duty Platinum 2013 - 2016 4WD
• Ford F-350 Super Duty King Ranch 2017 - 2019 4WD
• Ford F-350 Super Duty Platinum 2017 - 2019 4WD
• Ford F-350 Super Duty XLT 2017 - 2019 4WD
• Ford F-350 Super Duty Lariat 2017 - 2019 4WD
• Ford F-350 Super Duty XL 2017 - 2019 4WD
• Ford F-350 Super Duty Limited 2018 - 2019
• Ford F-350 Super Duty XLT 2020 - 2022 4WD
• Ford F-350 Super Duty King Ranch 2020 - 2022 4WD
• Ford F-350 Super Duty Platinum 2020 - 2022 4WD
• Ford F-350 Super Duty XL 2020 - 2022 4WD
• Ford F-350 Super Duty Lariat 2020 - 2022 4WD
• Ford F-350 Super Duty Limited 2020 - 2022
• Ford F-350 Super Duty XLT 2020 - 2021 4WD
• Ford F-350 Super Duty XLT 2022 4WD
• Ford F-350 Super Duty Limited 2023 - 2024
• Ford F-350 Super Duty King Ranch 2023 - 2024
• Ford F-350 Super Duty Lariat 2023 - 2024 4WD
• Ford F-350 Super Duty Platinum 2023 - 2024
• Ford F-350 Super Duty XL 2023 - 2024 4WD
• Ford F-350 Super Duty XLT 2023 - 2024 4WD
