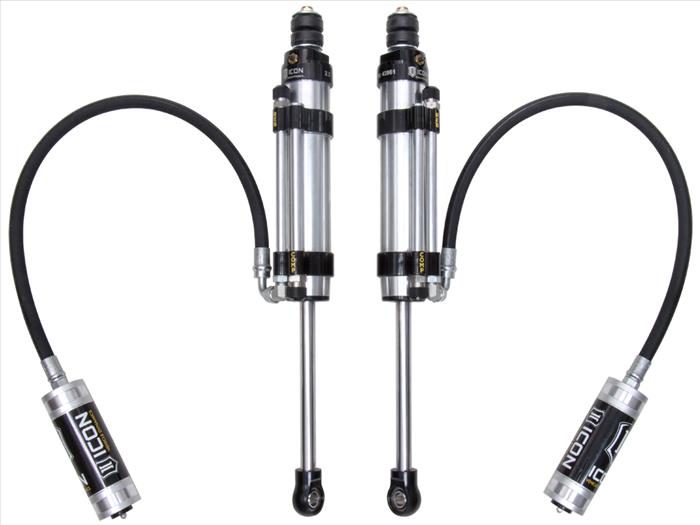

ICON 2007-2014 Toyota FJ Cruiser/2003-2023 Toyota 4Runner/2003-2023 Lexus GX, 1-3” Lift, Rear 2.5 VS Omega Bypass Remote Reservoir Shocks, Pair at Sexton Offroad in Salt Lake City & Park City, Utah

ICON Omega Series Bypass shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in length but allow the user to customize the ride characteristics to their liking through adjustment of the bypass valves. Like all ICON shock absorbers, Omega Series shocks are 100% rebuildable and 100% revalveable. ICON’s use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal “Bump Zone” that when used, creates a significant increase in damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON Bypass Valve is an externally adjustable valve that restricts oil flow through the bypass tube and provides 28 settings of compression and rebound adjustment with no tools required.

Features | Specification:

• ICON's Bypass Valve technology allows adjustment of compression and rebound damping with high resolution across the entire adjustment range
• Hand adjustable bypass valves with 28 detented settings at quarter turn increments for precise suspension tuning
• Bypass tubes are replaceable in the event of damage
• Internal “Bump Zone" increases damping force to provide more control as the shock approaches full compression
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• 7/8" diameter induction hardened, chrome plated shock shaft
• PTFE lined spherical bearings and application specific mounting hardware
• 6061 aircraft grade aluminum CNC machined components
• One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• 100% Rebuildable
• 100% Revalveable

Note(s):

• Compatible with 1-3" of rear lift over stock
• Will not fit models with factory rear air suspension. Vehicles equipped with rear air suspension require rear coil conversion, ICON part number 56110, and rear coil springs, ICON part number 52700 or 52800.
• Vehicles equipped with Kinetic Dynamic Suspension System (KDSS) also require ICON rear track bar part numer 54200

Upgrade your 4x4 with quality parts and accessories from Sexton Offroad. Visit us for installation at our Salt Lake City or Park City, Utah locations. Plus, enjoy free shipping on thousands of products nationwide!

This Item Fits:

• Lexus GX470 2003
• Lexus GX470 2004 - 2007
• Lexus GX470 2008 - 2009
• Lexus GX460 2010 - 2023
• Toyota 4Runner SR5 2003 - 2023
• Toyota 4Runner Sport 2003 - 2009
• Toyota 4Runner Limited 2003 - 2006
• Toyota 4Runner Limited 2007 - 2023
• Toyota 4Runner Trail 2010 - 2016
• Toyota 4Runner TRD Pro 2015 - 2023
• Toyota 4Runner TRD Off-Road 2017 - 2023
• Toyota 4Runner Base 2017 - 2018
• Toyota 4Runner Base 2020 - 2021
• Toyota 4Runner SR5 Premium 2018 - 2023
• Toyota 4Runner TRD Off-Road Premium 2018 - 2023
• Toyota 4Runner Nightshade 2020 - 2022
• Toyota 4Runner Venture 2020 - 2022
• Toyota 4Runner Trail 2021 - 2022
• Toyota 4Runner TRD Sport 2022 - 2023
• Toyota 4Runner 40th Anniversary Edition 2023
• Toyota FJ Cruiser 2007 - 2014
