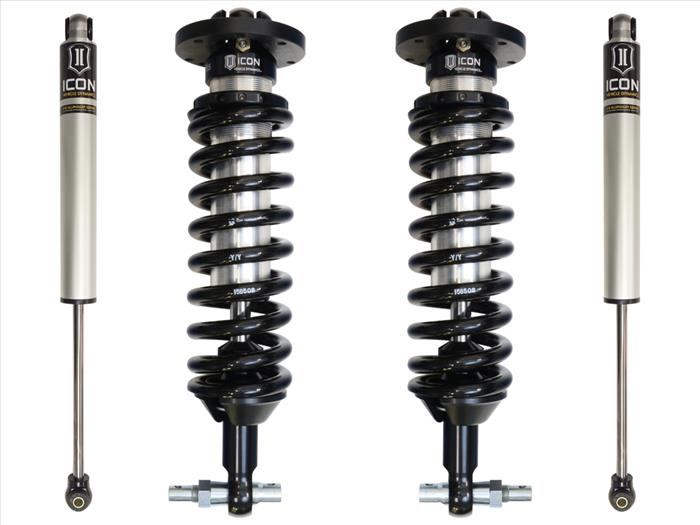

ICON 2007-2016 GM 1500, 1-3" Lift, Stage 1 Suspension Systemr at Sexton Offroad in Salt Lake City & Park City, Utah

ICON Vehicle Dynamics 2007-2018 GM Silverado/Sierra 1500 suspension systems are designed to dramatically increase the on and off-road ride quality. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. With wheel travel and ride quality in mind, ICON engineers researched each component of the GM platform’s suspension and addressed any areas where performance could be extracted. The Stage 1 system includes vehicle-specific tuned 2.5 coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 1-3” allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.0 Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics GM Silverado/Sierra 1500 Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

Features | Specification:

• Fits 2WD and 4WD models
• Increased wheel travel and ride quality over stock with no change in towing capacity
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• Adjustable coilovers allow for f 1-3" of front lift height over stock
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• High strength alloy CNC machined lower bar pin
• FK rod end bearings for extended longevity and minimal deflection
• 2.0 Aluminum Series rear IFP shocks with 5/8" shock shafts

Note(s):

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00” Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00” Backspace / 0mm Offset
• Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
• APPLICATION NOTE #48: Slight Modifications To Factory Shock Mounts May Be Required
• APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
• APPLICATION NOTE #83: Trimming Of The Upper Control Arm Stop Required Or Down Travel Will Be Limited By Upper Arm Stop
• Not compatible with models equipped Magnetic Ride Control
• Included rear shocks are compatible with 0-2" of rear lift on most models
• Not recommended for Hybrid models
• Ships in multiple boxes

Upgrade your 4x4 with quality parts and accessories from Sexton Offroad. Visit us for installation at our Salt Lake City or Park City, Utah locations. Plus, enjoy free shipping on thousands of products nationwide!

This Item Fits:

• Chevrolet Suburban LT 2014
• Chevrolet Suburban LS 2015 - 2020
• Chevrolet Suburban LT 2015 - 2020
• Chevrolet Suburban LTZ 2015 - 2016
• Chevrolet Suburban Premier 2017 - 2020
• Chevrolet Silverado 1500 LD Custom 2019
• Chevrolet Silverado 1500 LD LT 2019
• Chevrolet Silverado 1500 LD WT 2019
• Chevrolet Silverado 1500 LT 2007 - 2020
• Chevrolet Silverado 1500 LTZ 2007 - 2018
• Chevrolet Silverado 1500 WT 2007 - 2018
• Chevrolet Silverado 1500 LS 2007 - 2013
• Chevrolet Silverado 1500 LS 2015 - 2018
• Chevrolet Silverado 1500 Base 2007 - 2012
• Chevrolet Silverado 1500 Base 2014
• Chevrolet Silverado 1500 Base 2016
• Chevrolet Silverado 1500 XFE 2010 - 2013
• Chevrolet Silverado 1500 High Country 2014 - 2016
• Chevrolet Silverado 1500 SSV 2015 - 2018
• Chevrolet Silverado 1500 Custom 2016 - 2018
• Chevrolet Silverado 1500 High Country 2017 - 2018
• Chevrolet Suburban 1500 LS 2007 - 2014
• Chevrolet Suburban 1500 LT 2007 - 2014
• Chevrolet Suburban 1500 LTZ 2007 - 2014
• Chevrolet Suburban 1500 Base 2007 - 2012
• Chevrolet Suburban 1500 75 Aniversario Diamond Edition 2010
• Chevrolet Tahoe LS 2007 - 2020
• Chevrolet Tahoe LT 2007 - 2020
• Chevrolet Tahoe LTZ 2007 - 2014
• Chevrolet Tahoe Base 2007 - 2009
• Chevrolet Tahoe Base 2011 - 2012
• Chevrolet Tahoe Z71 2008 - 2010
• Chevrolet Tahoe Z71 2016 - 2017
• Chevrolet Tahoe PPV 2012 - 2020
• Chevrolet Tahoe SSV 2012 - 2020
• Chevrolet Tahoe Police 2014
• Chevrolet Tahoe Police 2017 - 2018
• Chevrolet Tahoe LTZ 2015 - 2016
• Chevrolet Tahoe Premier 2017 - 2020
• Chevrolet Tahoe Midnight Edition 2018
• GMC Yukon XL SLT 2015 - 2020
• GMC Yukon XL SLE 2015 - 2020
• GMC Sierra 1500 Limited Base 2019
• GMC Sierra 1500 Limited SLE 2019
• GMC Sierra 1500 SLE 2007 - 2018
• GMC Sierra 1500 SLT 2007 - 2018
• GMC Sierra 1500 Denali 2007 - 2014
• GMC Sierra 1500 SL 2007 - 2013
• GMC Sierra 1500 WT 2007 - 2013
• GMC Sierra 1500 XFE 2010 - 2013
• GMC Sierra 1500 Base 2014 - 2018
• GMC Yukon SLE 2007 - 2020
• GMC Yukon SLT 2007 - 2020
• GMC Yukon Denali 2007 - 2014
• GMC Yukon Base 2007 - 2009
• GMC Yukon Base 2011 - 2012
• GMC Yukon XL 1500 Denali 2007 - 2014
• GMC Yukon XL 1500 SLE 2007 - 2014
• GMC Yukon XL 1500 SLT 2007 - 2014
