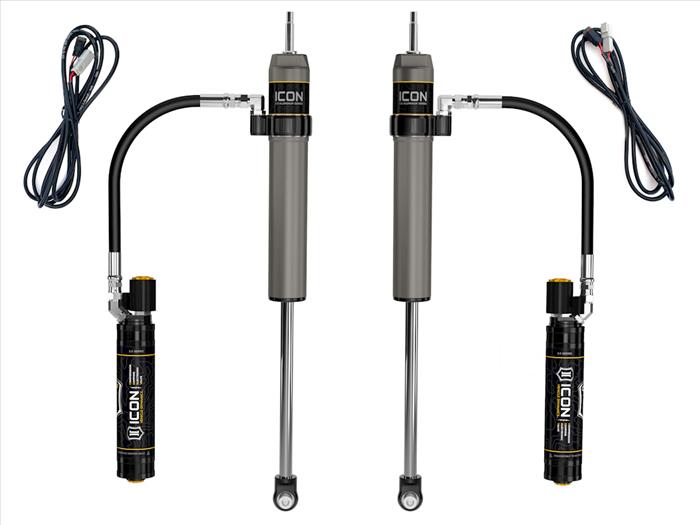

ICON 2010-2023 Toyota 4Runner, 1-3” Lift, Rear 2.5 VS Remote Reservoir w/ CDEV Shocks, Pair at Sexton Offroad in Salt Lake City & Park City, Utah

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks with CDEV are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks with CDEV are 100% rebuildable and 100% revalveable.

Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly.

Features | Specification:

• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• ICON’s internal “Bump Zone" increases damping by 20% to provide more control as the shock approaches full compression
• One-piece, hard anodized, impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• Nitrogen charged monotube design with piggyback reservoir
• One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• 7/8" diameter induction hardened, chrome plated shock shaft
• PTFE lined spherical bearings and application specific mounting hardware
• 6061 aircraft grade aluminum CNC machined components
• 100% Rebuildable
• 100% Revalveable

Note(s):

• Also requires installation of IIC kit (Part # 53504) and CDEV front coilovers (Part # 58747E)
• Compatible with 1-3" of rear lift over stock
• Only compatible with models equipped with 4.0L V6 engine
• Vehicles equipped with Kinetic Dynamic Suspension System (KDSS) also require ICON rear track bar part numer 54200

Upgrade your 4x4 with quality parts and accessories from Sexton Offroad. Visit us for installation at our Salt Lake City or Park City, Utah locations. Plus, enjoy free shipping on thousands of products nationwide!

This Item Fits:

• Toyota 4Runner Limited 2010 - 2023
• Toyota 4Runner SR5 2010 - 2023
• Toyota 4Runner Trail 2010 - 2016
• Toyota 4Runner TRD Pro 2015 - 2023
• Toyota 4Runner TRD Off-Road 2017 - 2023
• Toyota 4Runner Base 2017 - 2018
• Toyota 4Runner Base 2020 - 2021
• Toyota 4Runner SR5 Premium 2018 - 2023
• Toyota 4Runner TRD Off-Road Premium 2018 - 2023
• Toyota 4Runner Nightshade 2020 - 2022
• Toyota 4Runner Venture 2020 - 2022
• Toyota 4Runner Trail 2021 - 2022
• Toyota 4Runner TRD Sport 2022 - 2023
• Toyota 4Runner 40th Anniversary Edition 2023
