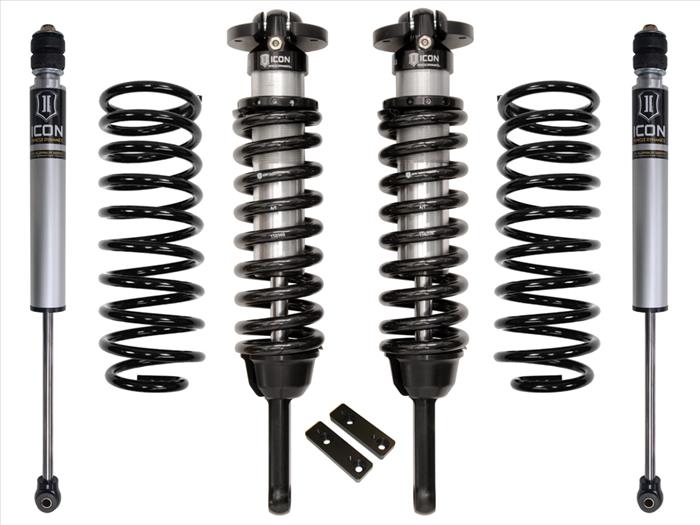

ICON 2010-2023 Toyota 4Runner/2010-2014 Toyota FJ Cruiser, 0-3.5" Lift, Stage 1 Suspension System at Sexton Offroad in Salt Lake City & Park City, Utah

This is our entry level suspension system for the 2010-2023 Toyota 4Runner and 2010-2014 FJ Cruiser. The Stage 1 system works well in most on and off-road scenarios by significantly improving factory body roll and overall driving ability. ICON 2.5 Series front coilover shocks feature a vehicle-specific tune to give your Toyota 4Runner great ride quality on or off-road, and they are adjustable from 0 to 3.5" of lift. Our rear 2.0 Aluminum Series shocks in this system are tuned to match the front 2.5 Series coilovers in every aspect, providing smooth and consistent damping performance front to rear. This system is finished off with a pair of 2" lift rear coil springs that have been engineered to further improve ride quality and handling.

Features | Specification:

• Increased wheel travel and ride quality over stock
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• Adjustable coilovers provide 0-3.5" of lift height
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• FK Rod End bearings for extended longevity and minimal deflection
• 2.0 Aluminum Series rear IFP shock with 5/8" shaft
• Bolt-on system means no cutting or welding necessary for install

Note(s):

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00” Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00” Backspace / 0mm Offset
• Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
• APPLICATION NOTE #30: An adjustable track bar is recommended to realign the axle but not required.
• APPLICATION NOTE #47: 700lb/in Expedition Coil available for heavier equipped vehicles
• APPLICATION NOTE #55: Shocks are fully serviceable. Coilover heights indicated are for a stock equipped vehicle
• APPLICATION NOTE #102: KDSS equipped require rear track bar 54200
• APPLICATION NOTE #111: Bump stop spacer kit available that can be installed to increase threads showing beyond max recommendation.

Upgrade your 4x4 with quality parts and accessories from Sexton Offroad. Visit us for installation at our Salt Lake City or Park City, Utah locations. Plus, enjoy free shipping on thousands of products nationwide!

This Item Fits:

• Toyota 4Runner SR5 2010 - 2023
• Toyota 4Runner Limited 2010 - 2022
• Toyota 4Runner Trail 2010 - 2016
• Toyota 4Runner TRD Pro 2015 - 2023
• Toyota 4Runner TRD Off-Road 2017 - 2023
• Toyota 4Runner Base 2017 - 2018
• Toyota 4Runner Base 2020 - 2021
• Toyota 4Runner SR5 Premium 2018 - 2023
• Toyota 4Runner TRD Off-Road Premium 2018 - 2023
• Toyota 4Runner Nightshade 2020 - 2022
• Toyota 4Runner Venture 2020 - 2022
• Toyota 4Runner Trail 2021 - 2022
• Toyota 4Runner TRD Sport 2022 - 2023
• Toyota 4Runner 40th Anniversary Edition 2023
• Toyota FJ Cruiser 2010 - 2014
