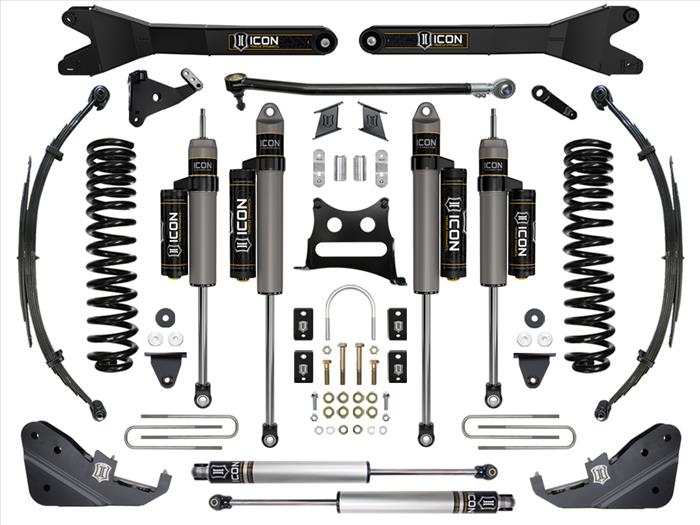

ICON 2017-2022 Ford F250/F350, 7" Lift, Stage 4 Suspension System, w/Radius Arm at Sexton Offroad in Salt Lake City & Park City, Utah

This ICON Vehicle Dynamics 7” suspension system is a great way to lift your 4WD 2017-2022 Ford F-250/F-350 Super Duty while drastically improving ride quality and performance. This suspension system is perfect for on-road and off-road use including towing, job site duty, and hardcore off-road adventure. ICON's 7" Stage 4 System is comprised of dual rate coil springs, progressive leaf springs, 4-Link kit, adjustable track bar, dual opposing steering stabilizer kit, ICON 2.5 Aluminum Series piggyback reservoir front and rear shocks, plus all of the necessary hardware for installation.

This Stage 4 system sees the inclusion of the ICON Vehicle Dynamics Ford Super Duty Radius Arm System that feature a sealed pivot bushing that minimizes road feedback and ensures a long life and quiet operation. Additionally, their fabricated, fully boxed design ensures strength and utilizes a profile optimized for tire clearance at full steering lock, making a 37” tall tire clear without coming in contact with the radius arm.

Features | Specification:

• Fits 2017-2022 F-250 / F-350 4WD applications
• Lifetime guarantee against coil spring breakage or sag
• Lifetime guarantee against ICON fabricated component breakage or manufacturer defect
• Approximately 50% increased front wheel travel over stock
• ICON-engineered dual rate coil springs deliver exceptional vehicle control over varying terrain
• Progressive leaf springs improve ride quality without reducing towing capacity
• Fabricated radius arms with drop brackets offer on vehicle caster adjustment, increased strength, and improved tire clearance at steering lock
• ICON shocks feature vehicle specific tune for superior performance and ride quality
• Shocks are fully rebuildable and revalvable
• 2.5 Aluminum Series shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• FK Rod End bearings provide extended longevity and minimal deflection

Note(s):

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
• Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
• APPLICATION NOTE #6: Springs Are Rated For Diesel Engines Only
• APPLICATION NOTE #8: This System May Require A Carrier Bearing Drop Bracket Kit (33700)
• APPLICATION NOTE #31: ‘08 - Current Superduty Models With Gas Engines May Need Exhaust Modified To Clear Front Driveshaft
• APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
• APPLICATION NOTE #57: Factory Block Must Be Used In Conjunction With ICON Leaf Springs For Truck To Sit Level.
• APPLICATION NOTE #118: Oem Stabilizer Does Not Work With Required Drag Link Flip On This Kit
• 2017-2019 Super Duty models will have front lift height of 7" over stock.
• 2020-2022 Super Duty models without Tremor package will have front lift height of 7.75" over stock. May require taller rear blocks with springs to sit level.
• 2020-2022 Super Duty models equipped with Tremor package will have front lift height of 6.75" over stock. May require taller rear blocks with springs to sit level.
• Brake line kit (Part # 61110) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install)
• Ships in multiple boxes

Upgrade your 4x4 with quality parts and accessories from Sexton Offroad. Visit us for installation at our Salt Lake City or Park City, Utah locations. Plus, enjoy free shipping on thousands of products nationwide!

This Item Fits:

• Ford F-250 Super Duty XL 2017 - 2019 4WD
• Ford F-250 Super Duty XLT 2017 - 2019 4WD
• Ford F-250 Super Duty Lariat 2017 - 2019 4WD
• Ford F-250 Super Duty King Ranch 2017 - 2019 4WD
• Ford F-250 Super Duty Platinum 2017 - 2019
• Ford F-250 Super Duty Limited 2018 - 2019
• Ford F-250 Super Duty XL 2020 - 2022 4WD
• Ford F-250 Super Duty Lariat 2020 - 2022 4WD
• Ford F-250 Super Duty King Ranch 2020 - 2022 4WD
• Ford F-250 Super Duty Platinum 2020 - 2022
• Ford F-250 Super Duty Limited 2020 - 2022
• Ford F-250 Super Duty XLT 2020 - 2021 4WD
• Ford F-250 Super Duty XLT 2022 4WD
• Ford F-350 Super Duty XL 2017 - 2019 4WD
• Ford F-350 Super Duty XLT 2017 - 2019 4WD
• Ford F-350 Super Duty Lariat 2017 - 2019 4WD
• Ford F-350 Super Duty King Ranch 2017 - 2019 4WD
• Ford F-350 Super Duty Platinum 2017 - 2019 4WD
• Ford F-350 Super Duty Limited 2018 - 2019
• Ford F-350 Super Duty XL 2020 - 2022 4WD
• Ford F-350 Super Duty Lariat 2020 - 2022 4WD
• Ford F-350 Super Duty King Ranch 2020 - 2022 4WD
• Ford F-350 Super Duty Platinum 2020 - 2022 4WD
• Ford F-350 Super Duty Limited 2020 - 2022
• Ford F-350 Super Duty XLT 2020 - 2021 4WD
• Ford F-350 Super Duty XLT 2022 4WD
