ICON 2018-Up Jeep JL Wrangler, 2.5" Lift, Stage 4 Suspension System at Sexton Offroad in Salt Lake City & Park City, Utah

Through an accelerated testing process dubbed the “ICON1K” R&D program, ICON has logged over a thousand miles in the dirt pushing the JL to off-road extremes to identify limiting factors in OE components, develop products that remove these limits, and further extrapolate performance out of this vehicle. This 2.5” suspension system has been tweaked, tuned, and revised several times over the course of this ICON1K testing in an effort to provide unparalleled ride quality and vehicle dynamics for everything from rock crawling to high-speed desert running.

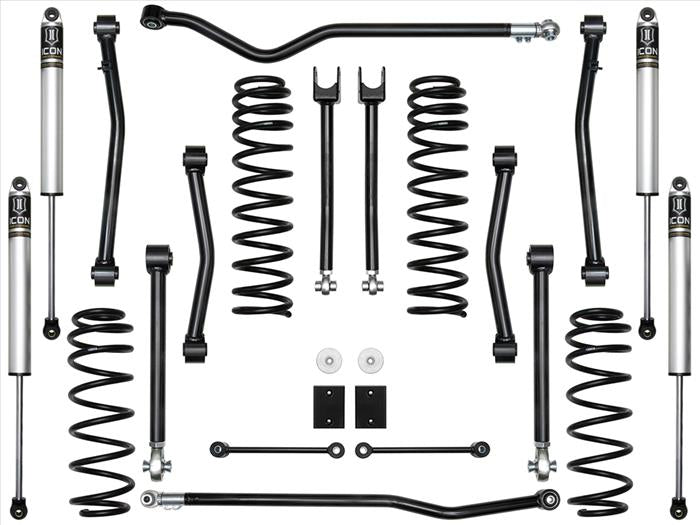

The ICON Vehicle Dynamics Stage 4 2.5" Suspension System for the 2018-UP Jeep Wrangler JL is designed for the driver looking to drastically improve the performance and ride quality of their vehicle. This Stage 4 system includes 2.5" lift dual rate coil springs, Vehicle Specific 2.0 Aluminum Series shocks, tubular steel adjustable front upper links, fixed front lower links, fixed rear upper links, adjustable rear lower links, adjustable front and rear track bars, bump stop spacers, sway bar links, and all necessary hardware to complete the installation. With this combination of components, ICON was able to increase wheel travel numbers by over 30% (3" front, 2" rear), redefining the potential of the 2018-UP JL. The front lower links included with this system are constructed from thick wall steel tubing, provide increased castor numbers, and feature dual durometer bushings for noise free operation, maximum articulation, and minimal bind. The Stage 4 system allows for fitment of 35" tires when used with ICON's recommended wheel specifications. For users looking to install 37" tires, an optional bump stop spacer kit (PN: 22029) is available.

Holistic Engineering - the ICON Difference: When developing suspension components for a new vehicle, ICON takes a different approach than many others. Rather than focusing in on one particular part, ICON engineers look at the vehicle as a whole, identify inherent strengths and weaknesses, and set a target for performance. With a focus on maximizing wheel travel and improving ride quality, ICON will develop components that address (and often times replace) OE limiting factors. This "holistic engineering" philosophy often results in the development of several parts designed to work together as a system to provide a balanced on and off-road performance upgrade. Because ICON is designing and manufacturing all of the components necessary to improve the performance of a vehicle from front to back, end-users can rest easy knowing they are dealing with ONE manufacturer, ONE standard of quality, and ONE awesome warranty to back it all up.

Features | Specification:

• 2.5" lift height
• Fits 35" tires (37" with optional bump stop spacer kit PN: 22029)
• 3" front, 2" rear increase in wheel travel
• Improves on and off-road ride quality over stock
• Dual rate coil springs with lifetime guarantee against sagging/breakage
• 2.0 Aluminum Series shocks with vehicle specific valving
• Tubular steel link arms with dual durometer bushings for noise free performance, maximum articulation, and minimal bind
• 100% bolt-on system makes for an easy install
• “ICON 1K" tested under rigorous off-road conditions to validate tune, performance, strength, and durability

Note(s):

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.5” Backspace / -6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 4.5” Backspace / -12mm Offset
• Recommended Aftermarket Tires: 35" x 12.50" (37" x 12.50" with optional bump stop spacer kit PN: 22029)
• APPLICATION NOTE #66: 2 Door Models Sit Slightly Higher Than 4 Door Models But Remain Level When Installed
• APPLICATION NOTE #150: Shocks Are Fully Serviceable
• ICON’s advertised lift heights are based around a typical Jeep JL build which usually includes added weight of accessories such as heavier front bumper/winch and heavier rear bumper/spare tire. Lift heights may be higher than advertised if installed on a stock weighted vehicle.
• Not compatible with Unlimited 4xe or Unlimited Rubicon 392 trims. See ICON Help Center for more information.
• Diesel models will net approx. 1.75" of front lift over stock due to their heavier weight.
• Ships In Multiple Boxes

Upgrade your 4x4 with quality parts and accessories from Sexton Offroad. Visit us for installation at our Salt Lake City or Park City, Utah locations. Plus, enjoy free shipping on thousands of products nationwide!

This Item Fits:

• Jeep Wrangler Sport 2018 - 2022
• Jeep Wrangler Unlimited Sport 2018 - 2022
• Jeep Wrangler Sport S 2018 - 2022
• Jeep Wrangler Unlimited Rubicon 2018 - 2022
• Jeep Wrangler Unlimited Sahara 2018 - 2022
• Jeep Wrangler Unlimited Sport S 2018 - 2022
• Jeep Wrangler Rubicon 2018 - 2022
• Jeep Wrangler Unlimited Moab 2018 - 2019
• Jeep Wrangler Rubicon Deluxe 2019 - 2020
• Jeep Wrangler Unlimited Rubicon 2020 - 2022
• Jeep Wrangler Unlimited Sahara 2020 - 2022
• Jeep Wrangler Unlimited Sport S 2020 - 2022
• Jeep Wrangler Unlimited Sport 2020 - 2022
• Jeep Wrangler Unlimited Rubicon Xtreme 2020
• Jeep Wrangler Unlimited Rubicon Deluxe 2020
• Jeep Wrangler Unlimited Sahara High Altitude 2021 - 2022
• Jeep Wrangler Unlimited Sport Altitude 2021 - 2022
• Jeep Wrangler Unlimited Sahara Altitude 2021 - 2022
• Jeep Wrangler Unlimited Willys Sport 2021 - 2022
• Jeep Wrangler Willys Sport 2021 - 2022
• Jeep Wrangler Unlimited Willys 2021 - 2022
• Jeep Wrangler Willys 2021 - 2022
• Jeep Wrangler Unlimited Islander 2021
• Jeep Wrangler 80th Anniversary 2021
• Jeep Wrangler Freedom 2021
• Jeep Wrangler Unlimited High Altitude 2021
• Jeep Wrangler Unlimited Freedom 2021
• Jeep Wrangler Unlimited 80th Anniversary 2021
• Jeep Wrangler Islander 2021
