ICON 2020-Up Jeep Gladiator, 2.5" Lift, Stage 5 Suspension System, Tubular UCA at Sexton Offroad in Salt Lake City & Park City, Utah

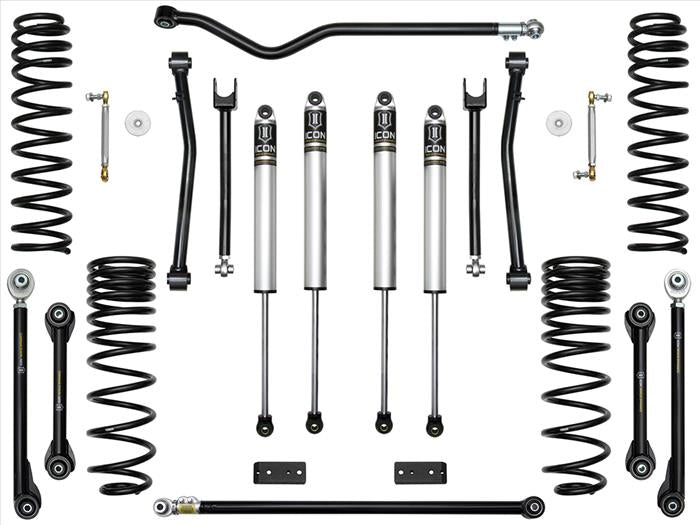

The Stage 5 ICON 2.5” Suspension System for the Jeep Gladiator is the ideal setup for significantly improving off-road performance and overall ride quality for the application that will see frequent moderate off-road use. This complete suspension system features 2.0 Aluminum Series shocks, 2.5” lift dual-rate front coil springs, tubular steel fixed lower and adjustable upper front links, billet front sway bar links, a triple-rate rear coil spring kit, tubular steel fixed upper and adjustable lower rear links, a rear sway bar relocation kit, front and rear adjustable track bars, and all necessary hardware for install. This system provides an increase of over 30% front and 20% rear wheel travel and was designed around the use of a 35” tire. For those looking to run a 37” tire this can be achieved with the ICON Jeep JT Bump Stop Spacer Kit (Part #22071).

Features | Specification:

• 2.5" lift height
• Fits 35" tires (37" with extended bump stop spacer kit)
• 33% front, 23% rear increase in wheel travel
• Improves on and off-road ride quality over stock
• Front upper and lower links included for caster angle correction and improved front end articulation
• Rear tubular upper and lower links improve rear end articulation and allow for pinion angle adjustment
• Dual rate front coil springs with lifetime guarantee against sagging/breakage
• Triple rate rear coil springs with ICON-engineered droop, ride, and overload rates
• 2.0 Aluminum Series shocks with vehicle specific valving
• Front and rear track bars ensure proper alignment and improved articulation
• Adjustable, billet aluminum front sway bar links
• 100% bolt-on system makes for an easy install
• “ICON 1K" tested under rigorous off-road conditions to validate tune, performance, strength, and durability

Note(s):

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.5” Backspace / -6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 4.5” Backspace / -12mm Offset
• Recommended Aftermarket Tires: 35" x 12.50" (37" x 12.50" with optional bump stop spacer kit PN: 22071)
• APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
• APPLICATION NOTE #127: Will Not Fit Gladiator Mojave Trim
• APPLICATION NOTE #150: Shocks Are Fully Serviceable
• ICON’s advertised lift heights are based around a typical Jeep JT build which usually includes added weight of accessories such as heavier front bumper/winch. Lift heights may be higher than advertised if installed on a stock weighted vehicle.
• Diesel models will net approx. 1.75" of front lift over stock due to their heavier weight.
• Ships In Multiple Boxes

Upgrade your 4x4 with quality parts and accessories from Sexton Offroad. Visit us for installation at our Salt Lake City or Park City, Utah locations. Plus, enjoy free shipping on thousands of products nationwide!

This Item Fits:

• Jeep Gladiator Sport S 2020 - 2022
• Jeep Gladiator Rubicon 2020 - 2022
• Jeep Gladiator Sport 2020 - 2022
• Jeep Gladiator Overland 2020 - 2022
• Jeep Gladiator Altitude 2020
• Jeep Gladiator Launch Edition 2020
• Jeep Gladiator Overland 2021 - 2022
• Jeep Gladiator High Altitude 2021 - 2022
• Jeep Gladiator Rubicon 2021 - 2022
• Jeep Gladiator Willys Sport 2021 - 2022
• Jeep Gladiator Sport 2021 - 2022
• Jeep Gladiator Willys 2021 - 2022
• Jeep Gladiator Sport S 2021 - 2022
• Jeep Gladiator 80th Anniversary 2021
