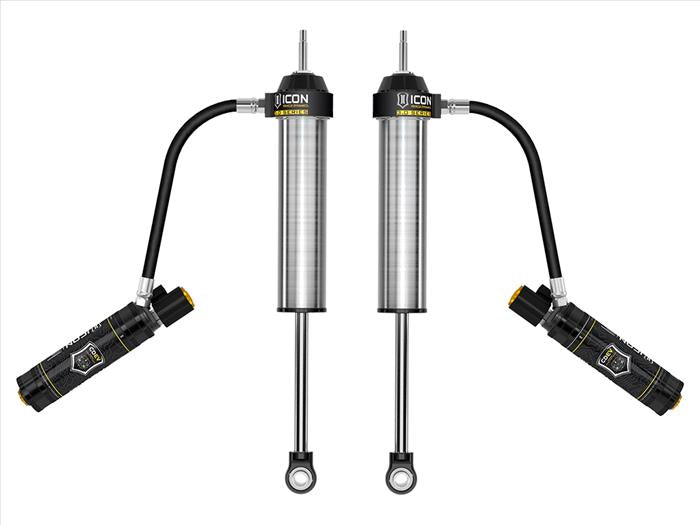

ICON 22-23 Toyota Tundra 0-1.5"/23 Sequoia 0-3", Rear 3.0 VS Shocks w/CDEV, Pair at Sexton Offroad in Salt Lake City & Park City, Utah

ICON's 3.0 Series Rear Shocks with CDEV for 2022-2023 Toyota Tundra/2023 Toyota Sequoia are designed to take the off-road capability of the truck to new levels by increasing wheel travel by up to 20% and significantly improving the damping ability of the rear shocks, while being compatible with rear lift heights up to 1.5" over stock on Tundra or up to 3" of rear lift on Sequoia.

3.0 Series shocks boast 50% more piston surface area compared to 2.5 Series shocks. This translates into increased stability and vehicle control at the extremes of off-road use, with benefits also making themselves apparent in on-road driving conditions. Increased internal oil volume and more external surface area compared to 2.5 Series Shocks offer improved heat dissipation and resistance to shock fade under hard use.

IICON's exclusive Compression Damping Electronic Valves are included for actively dialing in your suspension performance. Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly.

These 3.0 Series Shocks are designed as an OEM shock replacement, making installation a simple and straightforward bolt-on affair. Compatible with rear lift heights from 0-1.5” over stock on Tundra or up to 3" of rear lift on Sequoia, allowing for the fitment of larger, more aggressive wheel and tire combinations. First class ICON manufacturing processes and quality components are used to ensure these shocks function to their maximum potential without issue.

Features | Specification:

• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• 20% increase in rear suspension travel compared to stock
• Compatible with up to 1.5" of rear lift on most Tundra models or 3" of lift on Sequoia
• Vehicle specific design and tuning for superior shock damping and control
• 3.0" Body diameter for increased oil volume and larger piston area
• CNC machined 6061 aluminum components with a black anodized finish
• PTFE lined spherical bearings for extended longevity and minimal deflection
• 7/8" diameter induction hardened, chrome plated shock shafts
• Corrosion resistant CAD plated steel shock bodies
• Fully Rebuildable and Re-tunable

Note(s):

• Compatible with 0-1.5” of rear lift on non-TRD Tundras or 0-1" lift on TRD Tundras equipped with rear coil springs
• Compatible with 0-3” of rear lift on Tundras equipped with rear OE Load-leveling Rear Height Control Air Suspension
• Compatible with 0-3” of rear lift on 2023 Sequoias equipped with rear coil springs
• If upgrading a Tundra equipped with Adaptive Variable Suspension (AVS) all other vehicle systems remain functional
• Also requires installation of IIC kit (Part # 53508) and CDEV front coilovers (Part # 58770E or 58775E)

Upgrade your 4x4 with quality parts and accessories from Sexton Offroad. Visit us for installation at our Salt Lake City or Park City, Utah locations. Plus, enjoy free shipping on thousands of products nationwide!

This Item Fits:

• Toyota Tundra SR 2022 - 2023
• Toyota Tundra SR5 2022 - 2023
• Toyota Tundra Limited 2022 - 2023
• Toyota Tundra Platinum 2022 - 2023
• Toyota Tundra 1794 Edition 2022 - 2023
• Toyota Tundra TRD Pro 2022 - 2023
• Toyota Tundra Capstone 2022 - 2023
• Toyota Tundra SR TRD Off-Road 2022
• Toyota Tundra SR5 TRD Off-Road 2022
• Toyota Tundra Limited TRD Off-Road 2022
• Toyota Tundra Platinum 1794 Edition 2022
• Toyota Sequoia SR5 2023
• Toyota Sequoia Limited 2023
• Toyota Sequoia Platinum 2023
• Toyota Sequoia Capstone 2023
• Toyota Sequoia TRD Off-Road 2023
• Toyota Sequoia TRD Pro 2023
