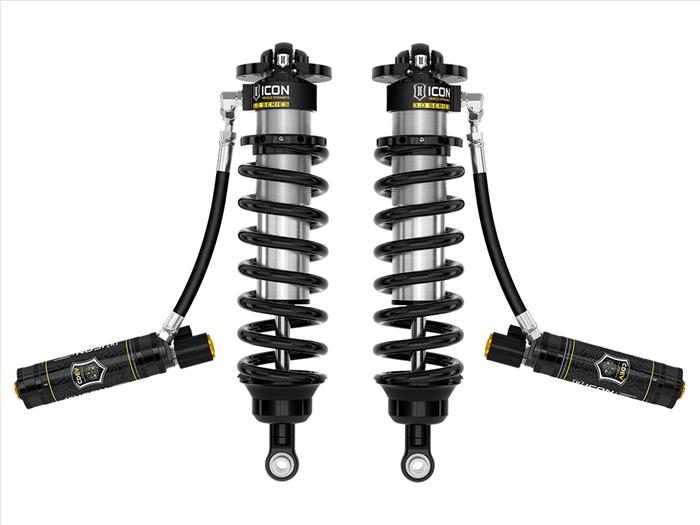

ICON 22-23 Tundra 1.25-3.25"/23 Sequoia 3-4.25", 3.0 VS CO Kit w/CDEV, Pair at Sexton Offroad in Salt Lake City & Park City, Utah

ICON's 3.0 Series Coilovers with CDEV for 2022-2023 Toyota Tundra and 2023 ToyotaSequoia are designed to take the off-road capability of the truck to new levels by increasing wheel travel by up to 40% and significantly improving the damping ability of the front shocks.

3.0 Series shocks boast 50% more piston surface area in the ride zone of the shock's travel, and 100% in the “Bump Zone”, compared to 2.5 Series shocks. This translates into increased stability and vehicle control at the extremes of off-road use, with benefits also making themselves apparent in on-road driving conditions. The multi-stage hydraulic Bump Zone featured in these 3.0 Series shocks exponentially increases bottom-out resistance as the shock travels through the last 40% of travel, keeping vehicle dynamics in check during those hard hits or unexpected obstacles.

ICON's exclusive Compression Damping Electronic Valves are included for actively dialing in your suspension performance. Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly.

These 3.0 Series coilovers are designed as an OEM shock replacement, making installation a simple and straightforward bolt-on affair. Built-in ride height adjustability yields 1.25 to 3.25” of front lift height on Tundra or 3-4.25" of front lift on Sequoia allowing for the fitment of larger, more aggressive wheel and tire combinations. First class ICON manufacturing processes and quality components are used to ensure these shocks function to their maximum potential without issue.

Features | Specification:

• 40% increase in front wheel travel over stock
• Adjustable up to 1.25-3.25" of front lift height over stock on Tundra or 3-4.25" of front lift on Sequoia
• Vehicle specific design and tuning for superior shock damping and control
• 3.0" Body diameter for increased oil volume and larger piston area
• ICON’s multi-stage, tunable hydraulic “Bump Zone" exponentially increases bottom-out resistance in the last 40% of compression travel
• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• CNC machined 6061 aluminum components with a black anodized finish
• PTFE lined spherical bearings for extended longevity and minimal deflection
• 7/8" diameter induction hardened, chrome plated shock shafts
• Fully Rebuildable and Re-tunable

Note(s):

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: 17x8.5" w/ 5.75” Backspace / 25mm Offset
• Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)
• APPLICATION NOTE #55: Shocks Are Fully Serviceable. Lift Heights Indicated Are For A Stock Equipped Vehicle.
• APPLICATION NOTE #85: Advertised Lift Height Ranges Are For A Stock Equipped Vehicle. Increasing Weight Of Vehicle Due To Accessories Will Alter Lift Range.
• APPLICATION NOTE #149: For 4Wd Models Without Trd Off-Road Package ICON Recommends Using ICON Diff Drop (Part# 55156) Or Using Toyota Trd Axles (Part# 434200C020 Driver / 434100C020 Pass). Failure To Do So Could Result In Front Axle Damage. Not Required For Trd Pro.
• Requires installation of ICON front upper control arms
• Also requires installation of IIC kit (Part # 53508) and CDEV rear shocks (Part # 57840EP or 57845EP)
• If upgrading a vehicle equipped with Adaptive Variable Suspension (AVS) all other vehicle systems remain functional
• Most Tundra sub-models equipped with i-Force gasoline engine will have front lift height range of 1.25-3.25" over stock
• Most Tundra sub-models equipped with i-Force MAX hybrid engine will have front lift height range of .75-2.75" over stock
• Tundra SR5 equipped with TRD Sport Suspension package will have lift height range of 2.25-4.25” over stock
• Tundra TRD Pro will have front lift height range of 0-1.5" over stock
• Most Sequoia sub-models will have front lift height range of 3.5-4.25" over stock
• Not compatible with Sequoia TRD Pro
• Tundra lift heights above 2.25” require sway bar drop bracket kit part number 55154. Required for all lift heights on Tundra TRD Pro and Sequoia.

Upgrade your 4x4 with quality parts and accessories from Sexton Offroad. Visit us for installation at our Salt Lake City or Park City, Utah locations. Plus, enjoy free shipping on thousands of products nationwide!

This Item Fits:

• Toyota Tundra SR 2022 - 2023 4WD
• Toyota Tundra SR5 2022 - 2023 4WD
• Toyota Tundra Limited 2022 - 2023 4WD
• Toyota Tundra Platinum 2022 - 2023 4WD
• Toyota Tundra 1794 Edition 2022 - 2023 4WD
• Toyota Tundra SR 2022 - 2023 RWD
• Toyota Tundra SR5 2022 - 2023 RWD
• Toyota Tundra Limited 2022 - 2023 RWD
• Toyota Tundra Platinum 2022 - 2023 RWD
• Toyota Tundra 1794 Edition 2022 - 2023 RWD
• Toyota Tundra Capstone 2022 - 2023
• Toyota Tundra TRD Pro 2022 - 2023
• Toyota Tundra SR TRD Off-Road 2022
• Toyota Tundra SR5 TRD Off-Road 2022
• Toyota Tundra Limited TRD Off-Road 2022
• Toyota Tundra Platinum 1794 Edition 2022
• Toyota Tundra SR5 2023 RWD
• Toyota Sequoia SR5 2023 RWD
• Toyota Sequoia SR5 2023 4WD
• Toyota Sequoia Limited 2023 RWD
• Toyota Sequoia Limited 2023 4WD
• Toyota Sequoia Platinum 2023 RWD
• Toyota Sequoia Platinum 2023 4WD
• Toyota Sequoia Capstone 2023 RWD
• Toyota Sequoia Capstone 2023 4WD
• Toyota Sequoia TRD Off-Road 2023
