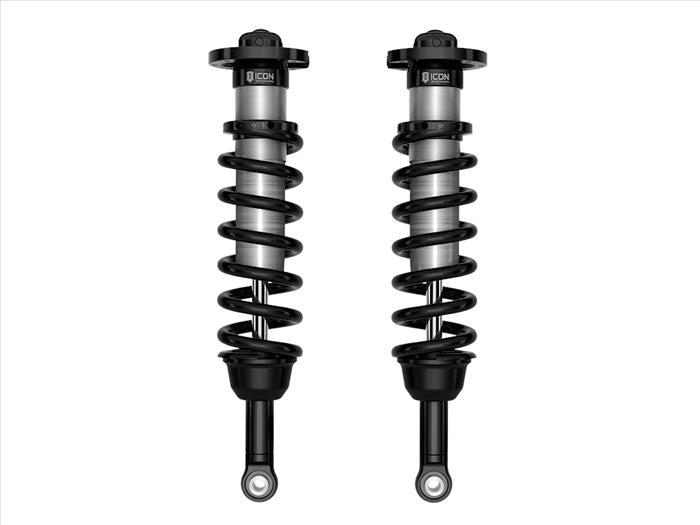

ICON 22-23 Tundra 1.25-3.5" Lift/23 Sequoia 3-4.5" Lift, 2.5 Front CO Kit, Pair at Sexton Offroad in Salt Lake City & Park City, Utah

ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2022-2023 Toyota Tundra and 2023 Toyota Sequoia. These adjustable coilovers allow up to 1.25-3.5” of lift height adjustability on a Tundra or 3-4.5" of lift height adjustability on a Sequoia, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tundra or Sequoia.

Features | Specification:

• Increased wheel travel and improved ride quality over stock
• Vehicle specific tuned for superior shock damping and control
• Adjustable ride height offers 1.25-3.5" of front lift over stock on Tundra or 3-4.5" of front lift over stock on Sequoia
• ICON engineered coil springs
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
• FK rod end bearings for extended longevity and minimal deflection
• Fully rebuildable and re-tunable

Note(s):

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: 17x8.5" w/ 5.75” Backspace / 25mm Offset
• Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)
• APPLICATION NOTE #55: Shocks Are Fully Serviceable. Lift Heights Indicated Are For A Stock Equipped Vehicle.
• APPLICATION NOTE #85: Advertised Lift Height Ranges Are For A Stock Equipped Vehicle. Increasing Weight Of Vehicle Due To Accessories Will Alter Lift Range.
• APPLICATION NOTE #146: Tundra Sr5 Equipped With Trd Sport Package Lift Range Will Be 2.25-4.5"
• APPLICATION NOTE #148: ICON Does Not Recommend Lifting Above 2.25" (Tundra)/3.75" (Sequoia) Without An ICON Upper Control Arm, Failure To Do So Can Result In Improper Wheel Alignment And Cause Damage To Front Axles On 4Wd Models
• APPLICATION NOTE #149: For 4Wd Models Without Trd Off-Road Package ICON Recommends Using ICON Diff Drop (Part# 55156) Or Using Toyota Trd Axles (Part# 434200C020 Driver / 434100C020 Pass). Failure To Do So Could Result In Front Axle Damage. Not Required For Trd Pro.
• If upgrading a vehicle equipped with Adaptive Variable Suspension (AVS) all other vehicle systems remain functional
• Most Tundra sub-models equipped with i-Force gasoline engine will have front lift height range of 1.25-3.5" over stock
• Most Tundra sub-models equipped with i-Force MAX hybrid engine will have front lift height range of .75-3" over stock
• Tundra TRD Pro will have front lift height range of 0-1.75" over stock. Requires ICON front upper control arms for any lift above stock height.
• Most Sequoia sub-models will have front lift height range of 3-4.5" over stock
• Tundra lift heights above 2.25” require sway bar drop bracket kit part number 55154. Required for all lift heights on Tundra TRD Pro and Sequoia.

Upgrade your 4x4 with quality parts and accessories from Sexton Offroad. Visit us for installation at our Salt Lake City or Park City, Utah locations. Plus, enjoy free shipping on thousands of products nationwide!

This Item Fits:

• Toyota Tundra SR 2022 - 2023 4WD
• Toyota Tundra SR5 2022 - 2023 4WD
• Toyota Tundra Limited 2022 - 2023 4WD
• Toyota Tundra Platinum 2022 - 2023 4WD
• Toyota Tundra 1794 Edition 2022 - 2023 4WD
• Toyota Tundra SR 2022 - 2023 RWD
• Toyota Tundra SR5 2022 - 2023 RWD
• Toyota Tundra Limited 2022 - 2023 RWD
• Toyota Tundra Platinum 2022 - 2023 RWD
• Toyota Tundra 1794 Edition 2022 - 2023 RWD
• Toyota Tundra Capstone 2022 - 2023
• Toyota Tundra TRD Pro 2022 - 2023
• Toyota Tundra SR TRD Off-Road 2022
• Toyota Tundra SR5 TRD Off-Road 2022
• Toyota Tundra Limited TRD Off-Road 2022
• Toyota Tundra Platinum 1794 Edition 2022
• Toyota Sequoia SR5 2023 4WD
• Toyota Sequoia SR5 2023 RWD
• Toyota Sequoia Limited 2023 4WD
• Toyota Sequoia Limited 2023 RWD
• Toyota Sequoia Platinum 2023 4WD
• Toyota Sequoia Platinum 2023 RWD
• Toyota Sequoia TRD Off-Road 2023
• Toyota Sequoia Capstone 2023 4WD
• Toyota Sequoia Capstone 2023 RWD
